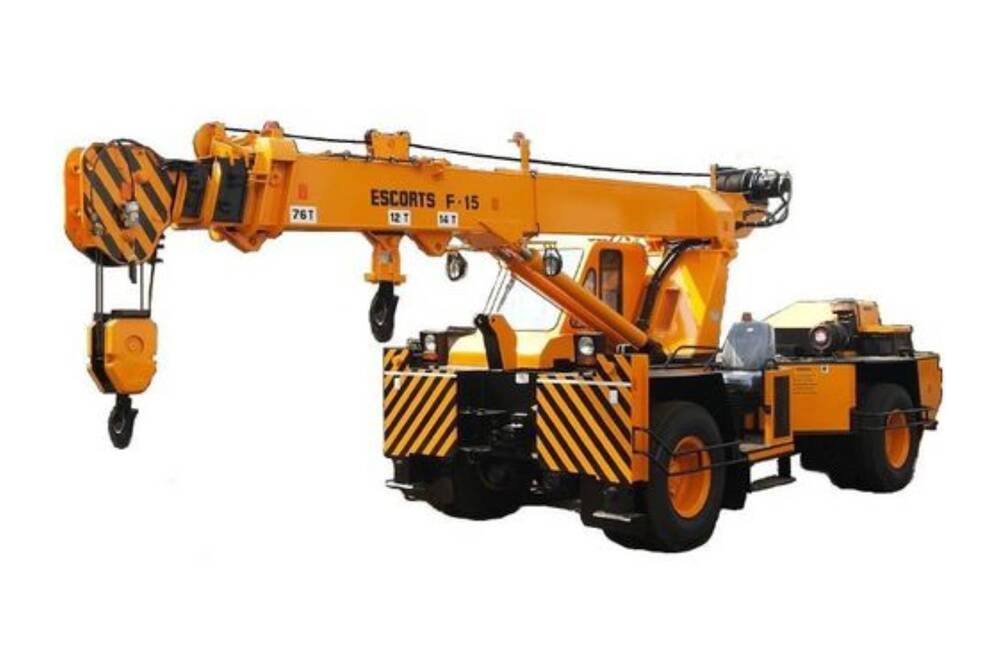

Franna Crane Hire

• Application
• Other, Construction, Material Handling, Heavy Lifting Operations

• Condition
• Other, Hire Available/In Good Condition

• Control Type
• Other, Driver Operated, Manual Controls

• Crane Total Weight
• 20,500 Kg

• Crane Traveling Speed
• Up to 40 km/h

• Crane Type
• Other Cranes, Franna Crane

• Emergency Stop
• Other, Available

• Feature
• Other , Pick and Carry, Hydraulically Operated, Mobile

• Lifting Capacity
• 23 Ton

• Lifting Height
• Up to 18.4 Mtrs

• Lifting Time
• Variable, Dependent on Load

• Limit Switch
• Other, Installed for Safe Operation

• Loading Capacity
• 23 Ton

• Material
• High-strength Steel

• Max Oil Flow of Hydraulic System
• 140 Lpm

• Max Pressure of Hydraulic System
• 300 Bar

• Recommend Power
• 110 HP

• Slewing Angle
• 360 Degrees Continuous

• Span Length
• N/A (Pick and Carry Design)

• Trolley Travel Speed
• Not applicable (Pick and Carry Crane)

• Working Presssure
• 300 Bar

• Application
• Other, Construction Material Lifting, Industrial Shifting, Infrastructure, Heavy Duty Shifting

• Condition
• Other, Available for Hire; Well-Maintained

• Control Type
• Other, Cabin Operated

• Crane Total Weight
• 15800 kg

• Crane Traveling Speed
• 30 km/h

• Crane Type
• Other Cranes, Franna Crane (Pick & Carry Type)

• Emergency Stop
• Yes

• Feature
• Other , Hydraulic, Mobile, Articulated Steering, Heavy Duty, Fast Operation

• Lifting Capacity
• 15 Ton

• Lifting Height
• Up to 17 meters

• Lifting Time
• Dependent on Load - Fast Operation

• Limit Switch
• Other, Provided

• Loading Capacity
• 15 Ton

• Material
• High Tensile Steel Structure

• Max Oil Flow of Hydraulic System
• 80 lpm

• Max Pressure of Hydraulic System
• 260 bar

• Recommend Power
• Ashok Leyland 4 Cylinder, 80 HP @ 2200 rpm

• Slewing Angle
• 180 Degrees

• Span Length
• Telescopic Boom - 17 meters maximum extended

• Working Presssure
• 260 bar
